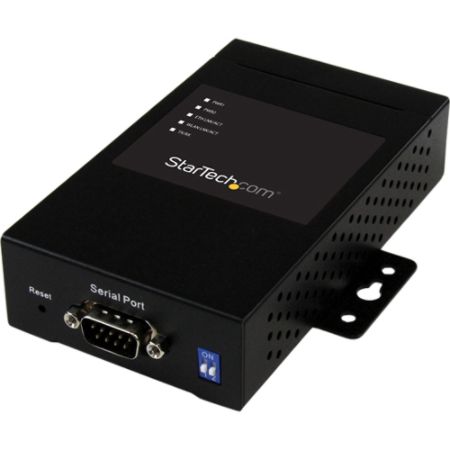

StarTech.com 1 Port Industrial RS-232/422/485 Serial to IP Ethernet Device Server - 2x 10/100Mbps Ports Item # 752887
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
752887
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Remotely manage an industrial RS232 or RS422/485 serial device over an IP network, with redundant 10/100 Ethernet ports. The NETRS232485 Serial Device Server lets you remotely manage an industrial RS232/422/485 serial device over a local or wide area network (LAN/WAN), with redundant power inputs and dual 10/100Mbps Ethernet ports.To minimize downtime, this intuitive dual Ethernet serial over IP solution maintains connection to your critical equipment by automatically switching to its secondary LAN port within 10 milliseconds of a network failure or disruption.Ideal for industrial environments, the serial to Ethernet device server accepts wide-range 12-48V DC power input via a terminal block or an optional DC jack, enabling you to add redundant power with a secondary adapter (e.g. 12V DC 1.5A Power Adapter SKU: IM12D1500P - sold separately), keeping the device server functional in the event of power surges or failures.This device server supports baud rates up to 460.8Kbps which provides a smooth, high-speed connection to your serial devices. The device server also offers support for HTTPS, SSH and SSL to ensure secure communication, while integrating remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols. You can customize the serial device server to suit your application with versatile browser-based or virtual com port software configuration.Ensuring performance in harsh environments, this serial device server offers 8KV air, and 4KV contact ESD (Electrostatic Discharge) Protection, and features a rugged, IP-30 case design that is both DIN rail and wall-mountable, with an extended operating temperature range (-40°C to 70°C).
Product Details
| Item # | 752887 |
| Manufacturer # | UR9679 |
| Ethernet Technology | Fast Ethernet |
| height | 4.9 in |
| Number of Network (RJ-45) Ports | 2 |
| Certifications & Standards | CE; FCC; IEEE Standards: 802.3; 802.3u |
| Serial Port | Yes |
| PoE (RJ-45) Port | No |
| width | 1.2 in |
| package contents | Serial Device Server; 1 x DIN-Rail Kit; 1 x Wall-Mount Kit w/ Screws; 1 x Software CD; 1 x Installation Guide; 2 x RJ-45 Dust Covers |
| depth | 2.8 in |
| Product Name | Serial Device Server |
| manufacturer | StarTech.com |
| weight | 11.50 oz |
| brand name | StarTech |
| USB | No |
| UNII Band | No |
| Network Standard | 10/100Base-TX |
| Network (RJ-45) | Yes |
| Centronics Port | No |
| Media Type Supported | Twisted Pair |
| Number of Serial Ports | 1 |
| Network (RJ-11) | No |
| Management Port | No |
| Wireless LAN | No |
| ISM Band | No |
| Parallel Port | No |
| Phone Line (RJ-11) | No |
| form factor | Rail-mountable; Wall Mountable |
| color | black |
| warranty length | 5-year limited |
